ORDERING INFORMATION
Specify code number and variables

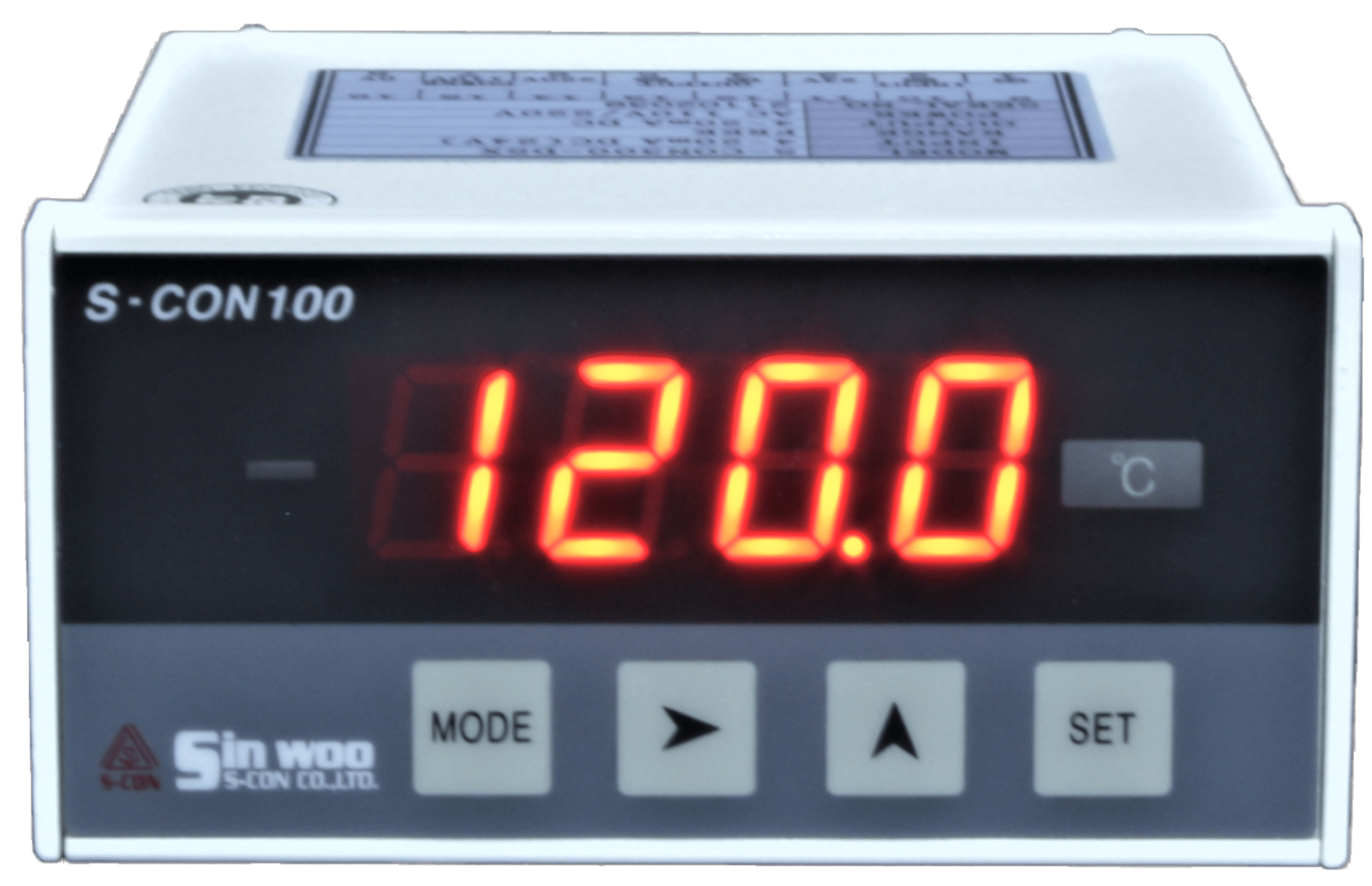

@Code number : S-CON – Input,Output,Power (e.g.S-CON 100-RNX)
@Special input,outputs range : CODE, Display range, Input range
(e.g. S-CON 100-DNX,0-9999,4-20 mA)
GENERAL SPECIFICATIONS
Construction :panel flush mounting
Connection :screw terminals at the rear panel
Housing material :Plastic(resin) light-gray
Input configuratio :Differential Input
Scaling :Programed function switches at the front panel
DISPLAY
LED : 0.56 inch or 1 inch 7-segment, red or green
Number of display digit : 4(-9999 ~ 9999) -except Polarity LED
Decimal point position : 3 positions selected by programmed function
switches at the front panel
Over-range indication : display “oVEr”
Engineering unit indication : sticker attached
INSTALLATION
Power Supply : AC 110V /220V 50/60Hz
DC 24V ±10% , 5VA
Operating temperature : 0 to 55 ℃(32 to 131 ℉)
Operating humidity : 20-80% RH (Non-condensing)
Mounting : panel flush mounting
Size : W96 × H48 × D118mm(3.78″×1.89″×4.65″)
PERFORMANCE
Accuracy : ±0.1% of FS
Temp. coefficient : ±0.01% of FS + 0.1 digit / ℃
Insulation resistance : 100MΩ or more with 500VDC
Dielectric strength : 1500V AC at 1 Minute(input to power)
