ORDERING INFORMATION
Specify code number and variables

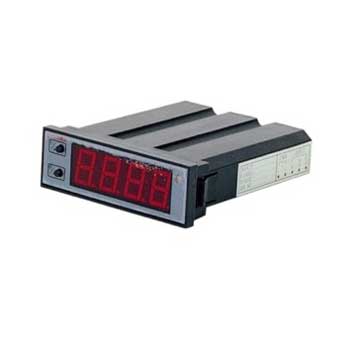

-Code number : S-CON800 Model, Input type, Power (e.g.S-CON800A -1NX)
-Specify input, outputs range : CODE, Display range, Input range (e.g.S-CON800A-
1NX,0-9999,4-20 mA)
GENERAL SPECIFICATIONS
Construction : panel flush mounting
Connection : DIN-standard connector terminals
Housing material : Plastic(resin) black
Input configuration : Single-ended
scaling : Programmed function switchs at the front panel
DISPLAY
LED : 0.56 inch 7-segment,red or green(option)
Number of display digit : 4(-999~9999)
Decimal point position : 3 positions selected by programmed function at the
front panel
Over-range indication : display “OVEr”
Engineering unit indication : sticker attached
INSTALLATION
Power Supply : 7V ~ 12V / 24V AC or DC
Operating temperature : 0 to 55 ℃(32 to 131℉)
Operating humidity : 20-80% RH (non-condensing)
Mounting : panel flush mounting
Size : W75 × H25 × D85mm (2.95″×0.98″×3.35″)
PERFORMANCE
Accuracy : ±0.1% of FS
Temp.coefficient : ±0.001% of FS +0.1 digit /℃
